Bruce Highway – Pine River to Caloundra Road Smart Motorways (Stage 2)
The Bruce Highway - Pine River to Caloundra Road Smart Motorways (Stage 2) project has delivered additional Smart Motorways technology along the 60km section of the Bruce Highway between the Pine River and Caloundra Road.
The project has further expanded the network of Smart Motorways technology that has been operating on the Bruce Highway southbound between Uhlmann Road and the Pine River since 2015.
Smart Motorways technology manages traffic in real-time to reduce stop-start travel, improve safety, and offer more reliable travel times.
Smart Motorways technologies can include ramp signals, variable speed limit and message signs, vehicle detection systems and CCTV cameras. These systems work together to deliver safer, smoother, and more reliable travel times for motorists.
Benefits
- Improves safety
- Improves network efficiency
- Reduces peak hour congestion
- Reduces travel time
- Contributes to economy
- Contributes to regional growth
Key features
- Ramp signals at highway entry ramps to manage traffic entering the highway.
- Variable speed limit signs to notify motorists of speed limit changes and proactively manage incidents on the road network.
- Variable message signs to communicate with motorists about changes in road conditions.
- Vehicle detection systems that capture data to enable the operation of Smart Motorways technology.
- CCTV cameras to monitor real-time traffic conditions.
Funding
The project was jointly funded by the Australian and Queensland governments on an 80:20 (federal:state) basis.
- Total investment
- $105 million
- Australian Government
- $84 million
- Queensland Government
- $21 million
Current status
Major construction is complete.
A key feature of the project was the introduction of ramp signalling at the following interchanges:

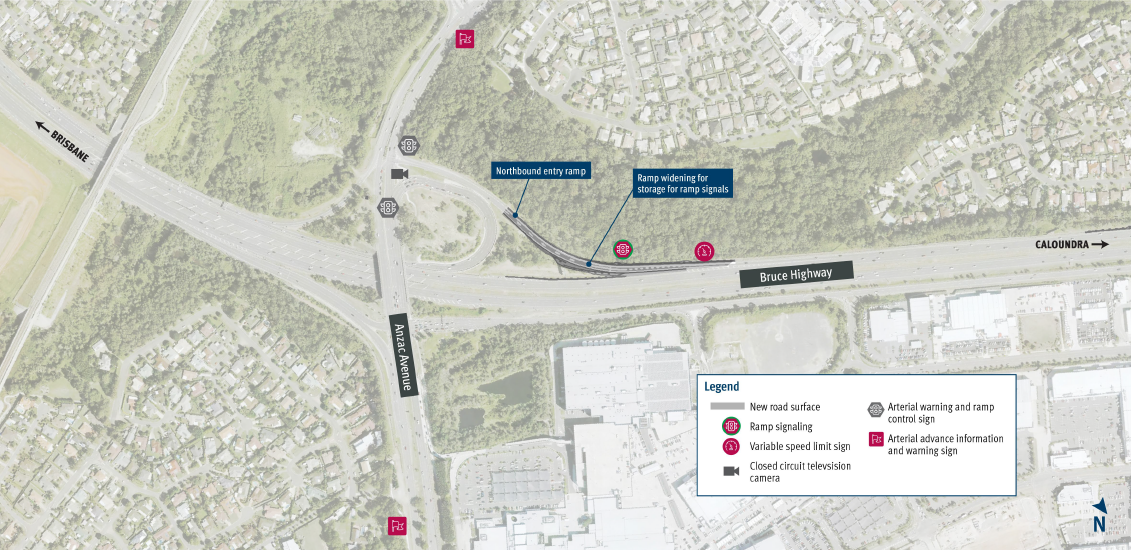

Anzac Avenue interchange northbound entry ramp

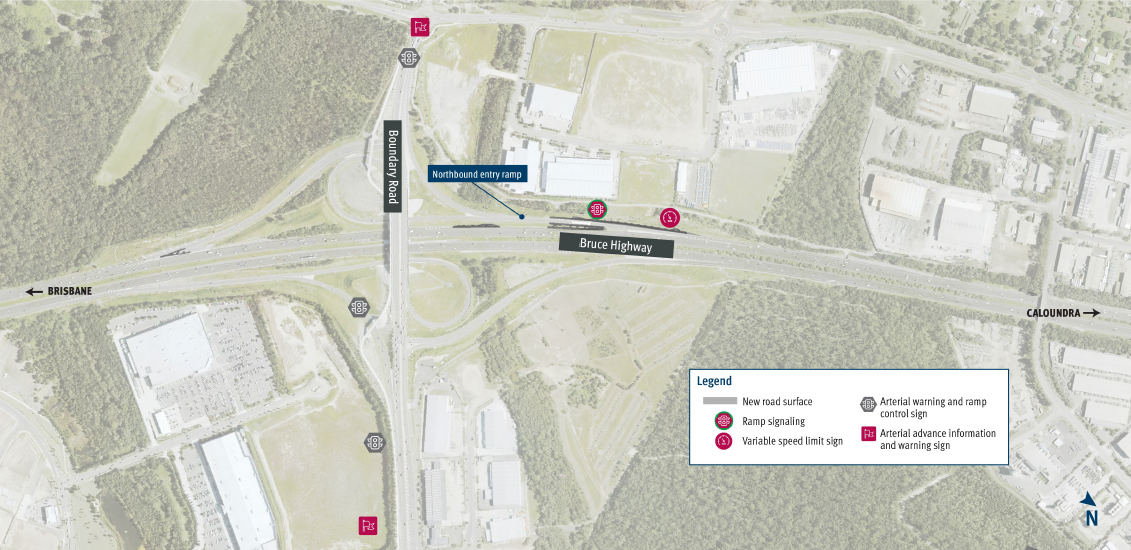

Boundary Road interchange northbound entry ramp

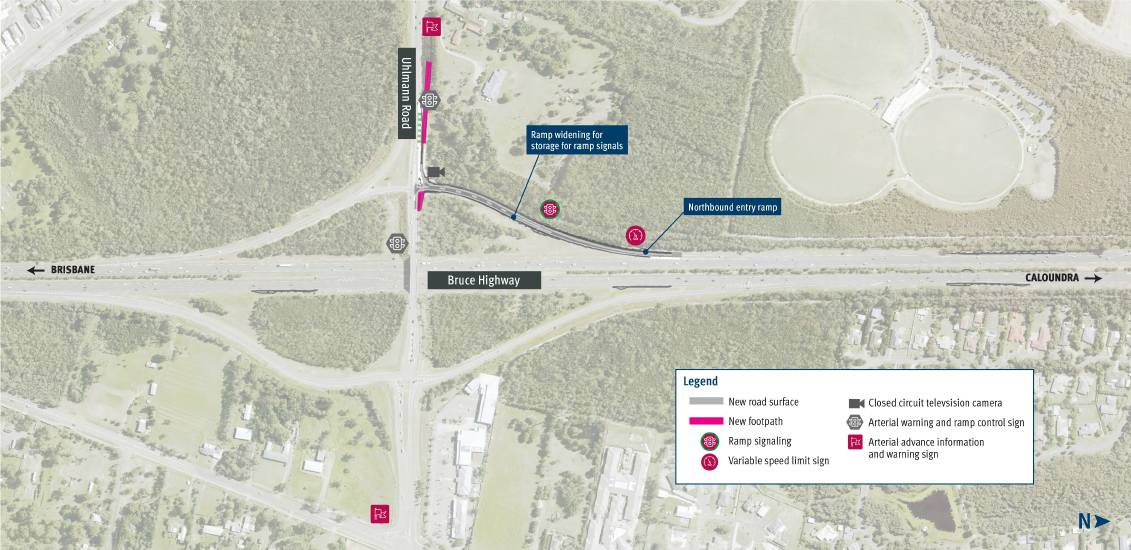

Uhlmann Road interchange northbound entry ramp

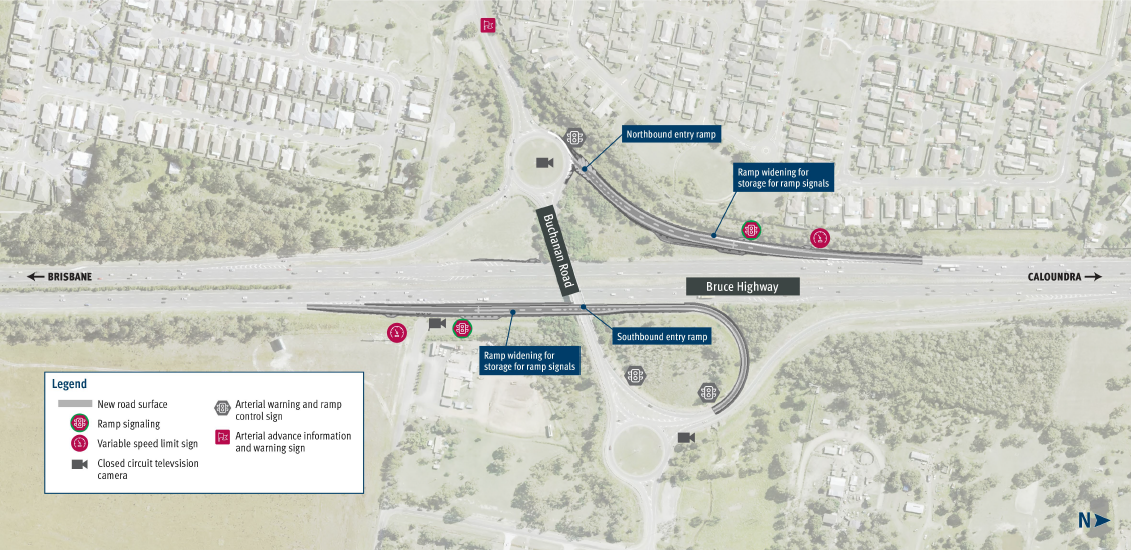

Buchanan Road interchange northbound and southbound entry ramps
Caboolture-Bribie Island Road interchange southbound entry ramp.

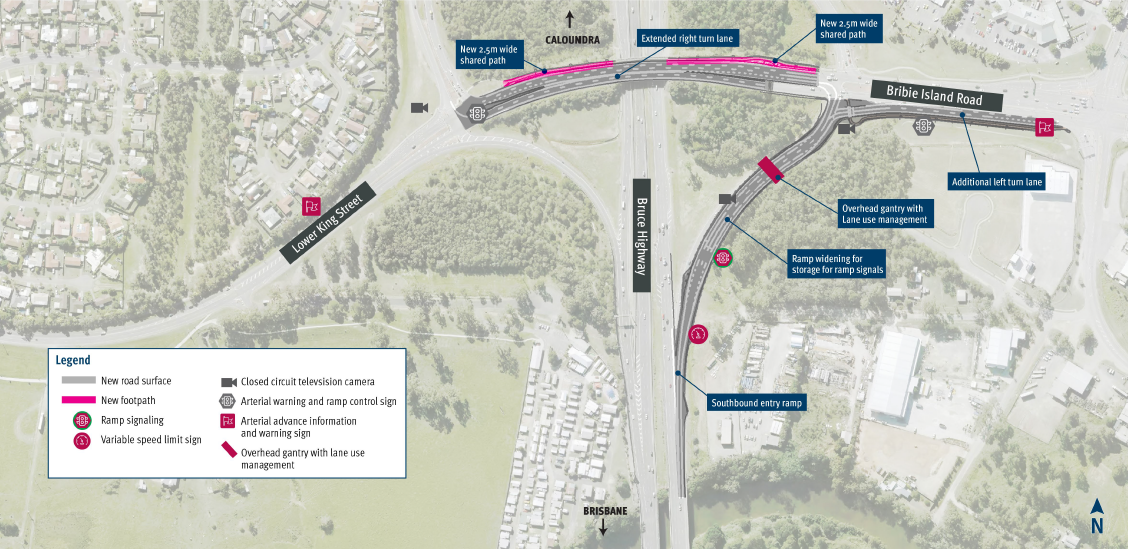

New ramp arrangement at the Bruce Highway southbound entry ramp on Caboolture-Bribie Island Road
A new ramp arrangement and technology at the Bruce Highway southbound entry from Caboolture-Bribie Island Road features 2 additional outside lanes to provide greater storage capacity and help manage traffic entering the highway.
Powered by Smart Motorways technology, ramp signals will be activated to open all 4 traffic lanes on the ramp during high demand periods or in response to incidents on the road network. The 2 additional outside lanes will be available for temporary use when the overhead sign is displaying a speed limit.
Once free-flowing traffic conditions return, the temporary use storage lanes will close and the overhead ramp signals will display a solid red cross. Motorists must not travel in these lanes when a cross is displayed overhead.
When the ramp signals are not in use, the ramp will revert to 2-lane operations.

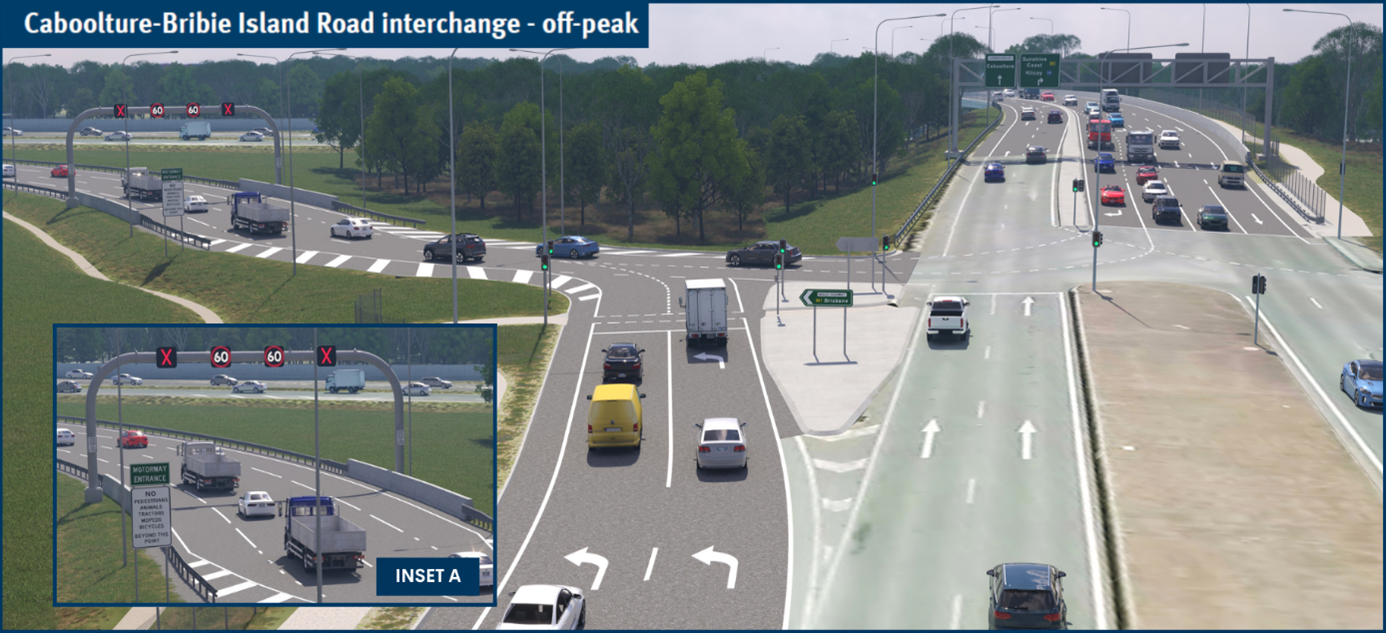

Artist’s impressions of new ramp arrangement:
Off-peak hour

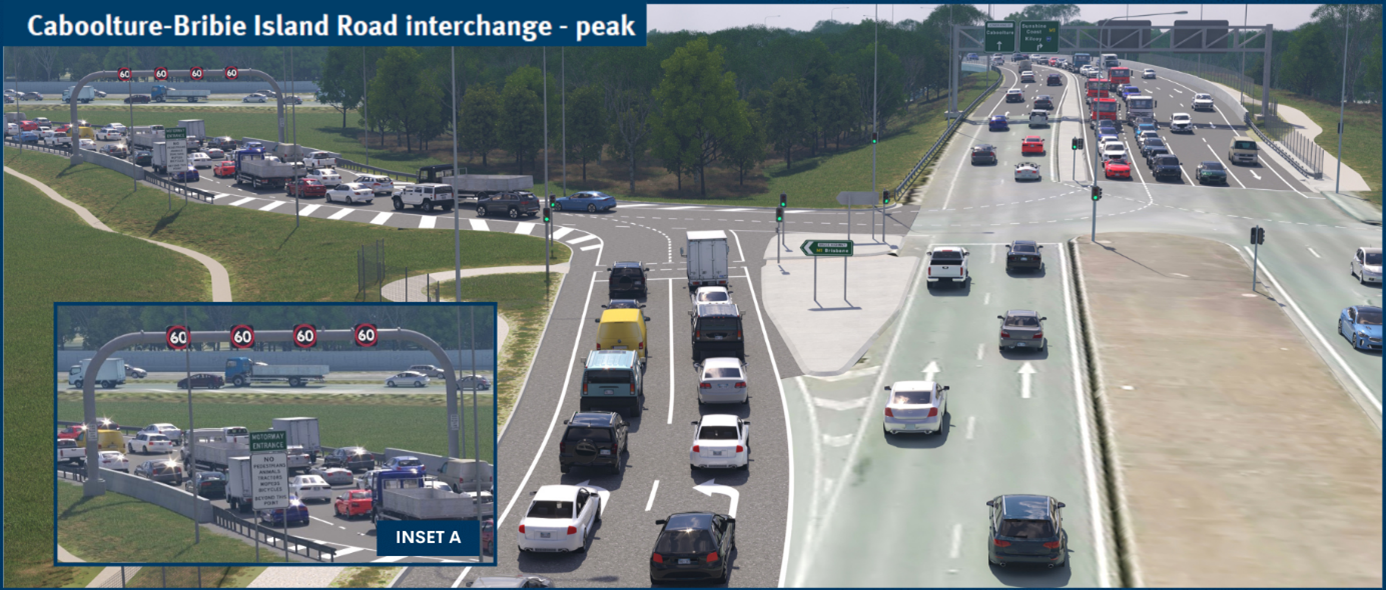

Peak hour

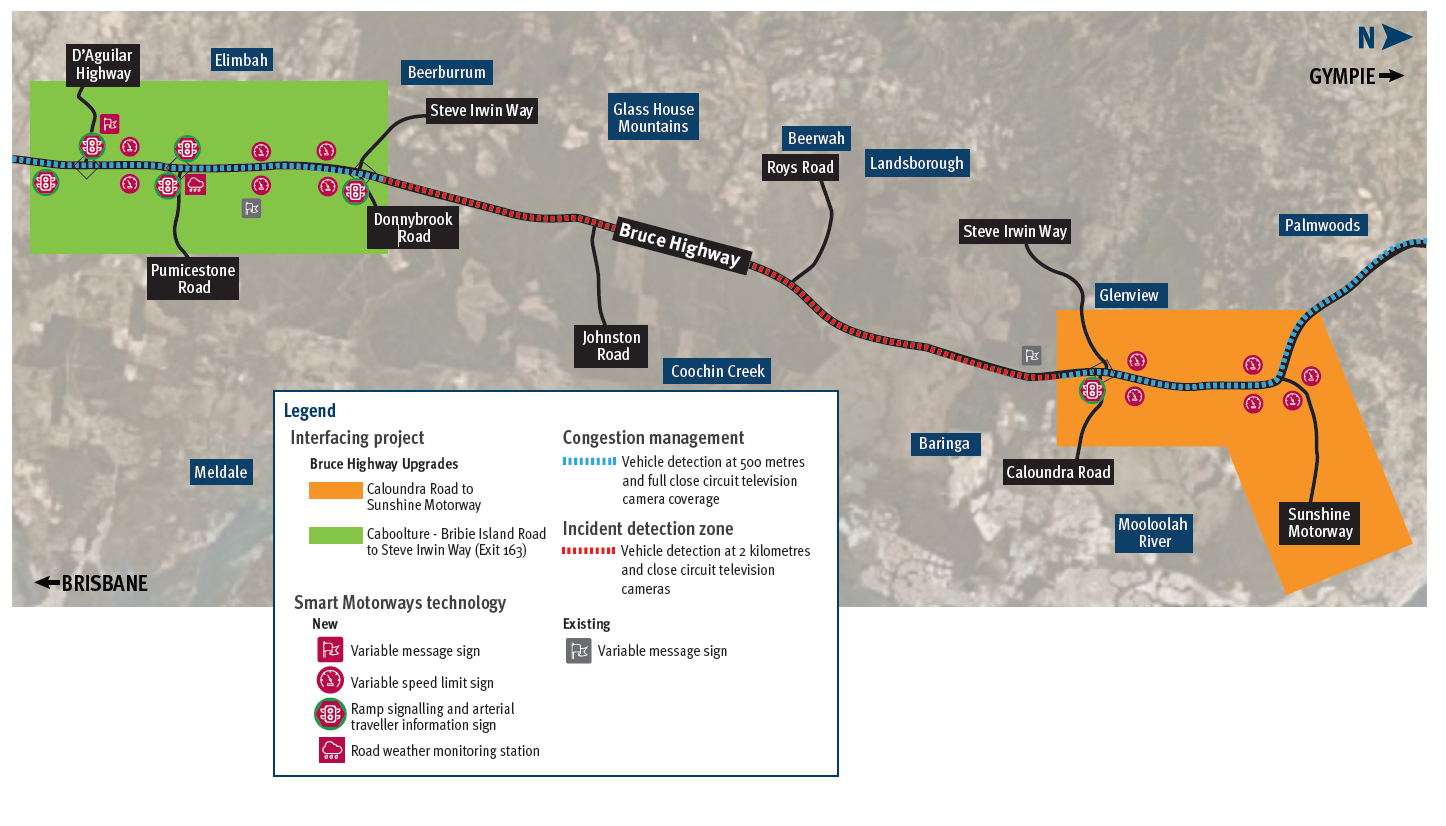

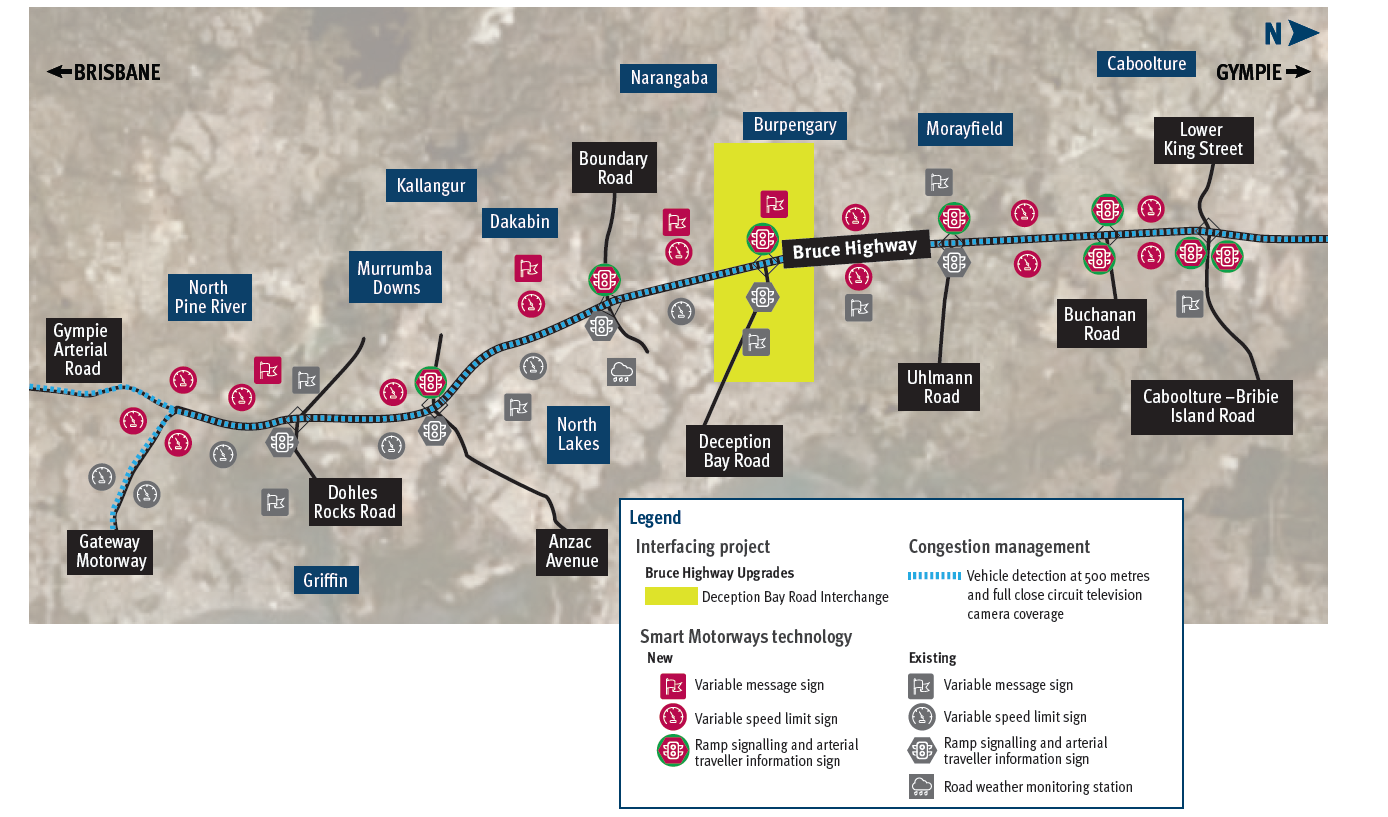

Project layout 1
Project layout 2
Project video
Video Transcript
The Bruce Highway is a vital artery for Queensland and a nationally-significant freight corridor. This is why the Australian and Queensland Governments are rolling out Smart Motorways technology at priority locations.
Along a 60 km stretch of the Bruce Highway between Pine River at Caboolture and Caloundra Road. The project will complement Smart Motorways Stage 1 technology installed southbound on the Bruce Highway between the Pine River and Uhlmann Road in 2015.
The project will utilise a range of Smart Motorways technology to proactively monitor and respond to traffic conditions in real-time on this section the Bruce Highway such as
- Ramp signals which use traffic signals at highway entry ramps during peak periods to manage traffic entering the highway and helps reduce congestion at merge points
- Variable speed limit signs which notify motorists when speed limits have changed in response to changing road conditions and
- Variable message signs which display information in response to traffic congestion, incidents or bad weather.
These technologies will work together to pro-actively manage the highway as one connected network –
- Helping to improve safety
- Reduce stop-start travel and
- Provide more predictable travel times for road users.
This technology has already been delivered at various locations around South East Queensland including the Gateway, Pacific and Logan motorways - as well as parts of the Bruce Highway which has been effective in reducing rear-end crashes and providing more predictable travel information for motorists during peak travel times.
Smart Motorways Stage 2 technology will be delivered in conjunction with three Bruce Highway Upgrade projects, the –
- Caloundra Road to Sunshine Motorway,
- Caboolture-Bribie Island Road to Steve Irwin Way Upgrade,
- and at the Deception Bay Road Interchange
Smart Motorways will allow the pro-active management of the South East Queensland road network in real-time - enabling motorists to safely travel where they want to go, more reliably.
The funding for this $105 million project is being delivered under an 80:20 federal and state funding arrangement, with the Australian Government contributing $84 million and the Queensland Government contributing $21 million.
